VMware Cloud Foundation 9.1: What Actually Changed

Broadcom shipped VMware Cloud Foundation 9.1 in May 2026. The marketing says “AI-ready private cloud.” The release notes tell a different story — one about operational maturity finally catching up to the platform’s ambition.

I’ve been running VMware Cloud Foundation since the 3.x days. This is the first release where the day-2 operations story feels complete. Not perfect. Complete.

VMware Cloud Foundation 9.1 Licensing: Core-Based, Subscription-Only, No Way Back

Perpetual licenses are gone. Broadcom killed them in 2024. If you’re still on 25-character keys, you’re already non-compliant.

VCF 9.1 connected mode eliminates manual license file handling. The Business Services Console (https://vcf.broadcom.com/vcf/clm) pushes license files to VCF Operations every 24 hours. Fleet-scale enforcement policies apply centrally — define password reuse restrictions once, enforce everywhere.

Two Tiers, Same Core Metric

Core counting hasn’t changed:

Total Licensable Cores = Σ (Physical Cores per CPU × CPU Sockets per Host)
Minimum: 16 cores per CPU socket (even if CPU has fewer)
Subscription Terms: 1, 3, or 5 years

What’s new in 9.1: vSAN TiB entitlement tracking per cluster in VCF Operations. Finally, chargeback works without spreadsheets.

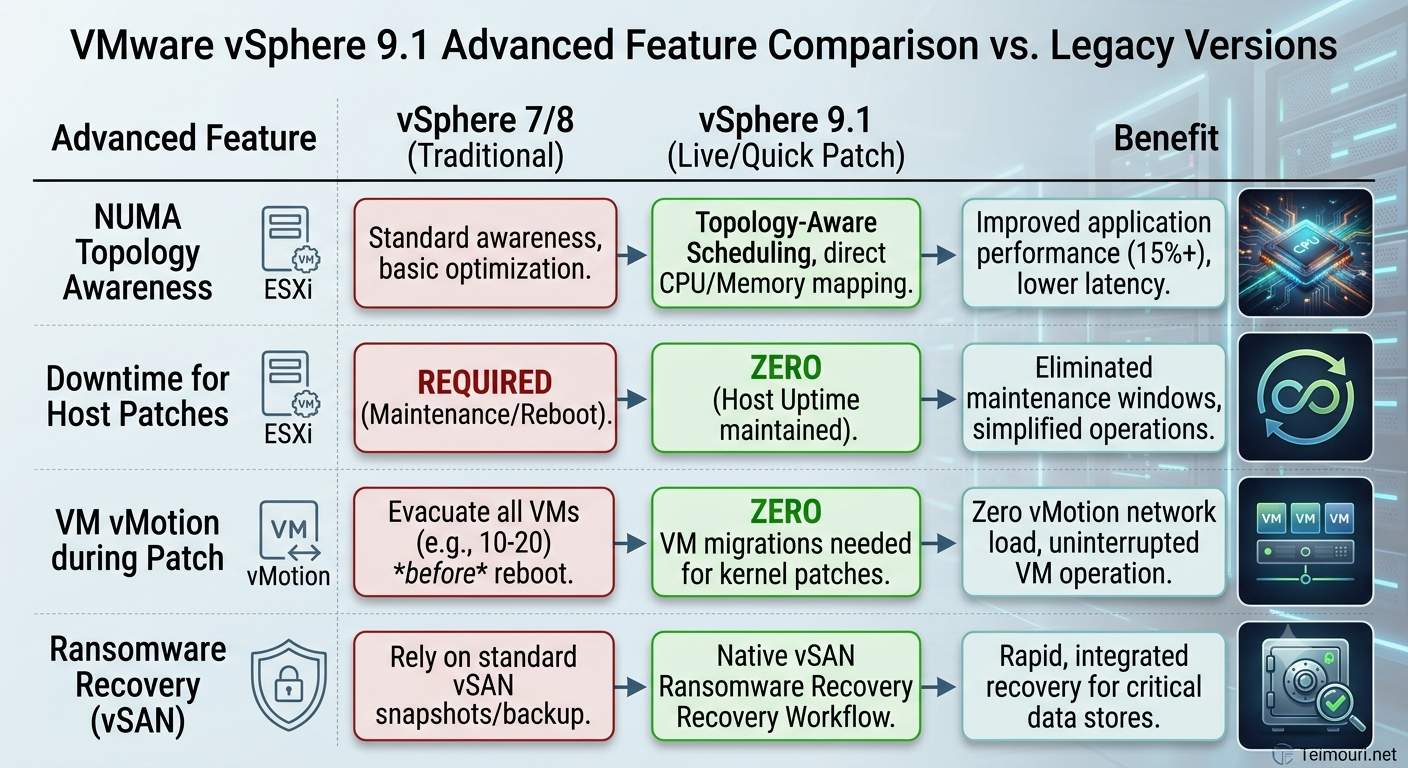

vCenter Patching: Finally Under 5 Minutes

Traditional vCenter patch = full RPM refresh = 30-60 minute maintenance window. vCenter Quick Patch changes this.

POST /api/vcenter/lcm/patches/quick-patch
{
"patch_spec": {
"patch_url": "https://vapp-updates.vmware.com/.../quick-patch-9.1.0.1.iso",
"accept_eula": true
}
}

Quick Patch updates only modified binaries. VAMI detects compatibility via metadata flag. Compatible patches apply in under 5 minutes — sometimes zero control-plane downtime.

Envoy proxy now fronts all management APIs. During maintenance:

HTTP/1.1 503 Service Unavailable
Retry-After: 300
X-VC-Maintenance: true
X-VC-Maintenance-ETA: 2026-05-15T14:30:00Z
X-VC-Maintenance-Type: quick-patch

vSphere Client, SDKs, Aria Operations — they all respect Retry-After. Automation pauses instead of failing. This is a contractual API guarantee.

Zero-Touch Provisioning: TFTP Is Dead

Legacy Auto Deploy needed TFTP + DHCP options 66/67. ZTP 9.1 removes TFTP entirely.

UEFI Firmware → HTTPS Boot URL (vCenter) → iPXE → ESXi Installer → Config Profile → Compliant Host

Boot URL: https://vcenter.fqdn:443/ztp/boot/{cluster-moid}/{host-moid}

Configuration Profile (YAML):

host:
  network:
    vswitch: vds-mgmt
    mtu: 9000
    ntp_servers: ["ntp1.corp.local", "ntp2.corp.local"]
  security:
    lockdown_mode: normal
    tpm: enabled
    uefi_secure_boot: true
  storage:
    vsan:
      enabled: true
      deduplication: true
      compression: zstd

Compute: Topology-Aware Scheduler (TAS) Finally Exists

Modern servers: 2-8 NUMA nodes, 64-256 cores, 4-8 GPUs per socket. Default DRS ignores all of it.

TAS consumes:

• NUMA distance matrix (`vsish` → `/sched/numa/hwLatency`)
• GPU/NVLink topology (`nvidia-smi –topo`)
• CXL memory tier mapping
• Accelerator device inventory (vSphere Device API)

VM Class with GPU Reservation

apiVersion: vmoperator.vmware.com/v1alpha1
kind: VirtualMachineClass
metadata:
  name: ai-inference-a100-40gb
spec:
  hardware:
    cpu: 32
    memory: 256Gi
    devices:
      gpus:
        - vendor: nvidia
          model: A100-40GB
          count: 2
          profile: vgpu-40c
  policies:
    resources:
      requests:
        nvidia.com/gpu: "2"
      limits:
        nvidia.com/gpu: "2"
    affinity:
      numa:
        preferred: true
        topology: "single-node"
      gpu:
        nvlink: required

Scheduler decision flow:

1. Filter hosts with required GPU count + vGPU profile
2. Score by NUMA distance (CPU ↔ GPU ↔ CXL memory)
3. Prefer single-NUMA-node placement for latency-sensitive inference
4. Reserve GPU BAR space: `pciPassthru0.msiEnabled = “TRUE”`

NUMA/vNUMA: What Changed

This builds on what I covered in vTopology in vSphere: NUMA and vNUMA Management (https://www.teimouri.net/vtopology-in-vsphere-numa-vnuma-best-practices/) — TAS operationalizes those concepts.

Storage: vSAN 9.1 Global Dedupe GA, ZSTD, Immutable Snaps

Global Deduplication: GA at Last

Capacity Reduction: Up to 8× (typical 3-5× mixed workloads)
Performance Impact: < 2% latency overhead (vs 5-8% in 8.0)
Encryption Support: Yes — dedupe + encryption at rest now compatible
Stretched Clusters: Not yet supported (EU constraint)

SHA-256 fingerprint per 4KB block. Global namespace across disk groups. Fingerprint index in DRAM (~1GB per 1TB logical).

esxcli vsan policy setdefault -c vdisk -p "("globalDedupe" "true")"
esxcli vsan policy setdefault -c vdisk -p "compression" "zstd"

Compression: ZSTD Is the New Default

ZSTD delivers 40% better ratio than LZ4 at comparable throughput on Ice Lake+/Milan+.

ZSTD delivers 40% better ratio than LZ4 at comparable throughput on Ice Lake+/Milan+.

VCF 9.1 rebrands vSAN Data Protection → vSAN Protection and Recovery — structural rewrite.

Snapshot Creation → Immutability Lock (configurable retention) → Replication (1-min RPO) → Recovery Site
                                    │
                                    └─ Cannot delete/modify until lock expires
                                       Even root@vcf-admin cannot bypass

SRM Ransomware Recovery Workflow:

1. 1. Detection: vSAN Health Check “Snapshots Immutability Check” alerts on lock violations
2. 2. Isolation: SRM Protection Group → “Ransomware Recovery” mode
3. 3. Analysis: Immutable snapshot timeline → last clean point
4. 4. Recovery: Orchestrated failover with validated snapshots
5. 5. Validation: Automated boot verification + app health checks
6. 6. Failback: Reverse replication after forensic clearance

Replication frequency: 1 minute (was 15 min in 8.0). Hundreds of recovery points.

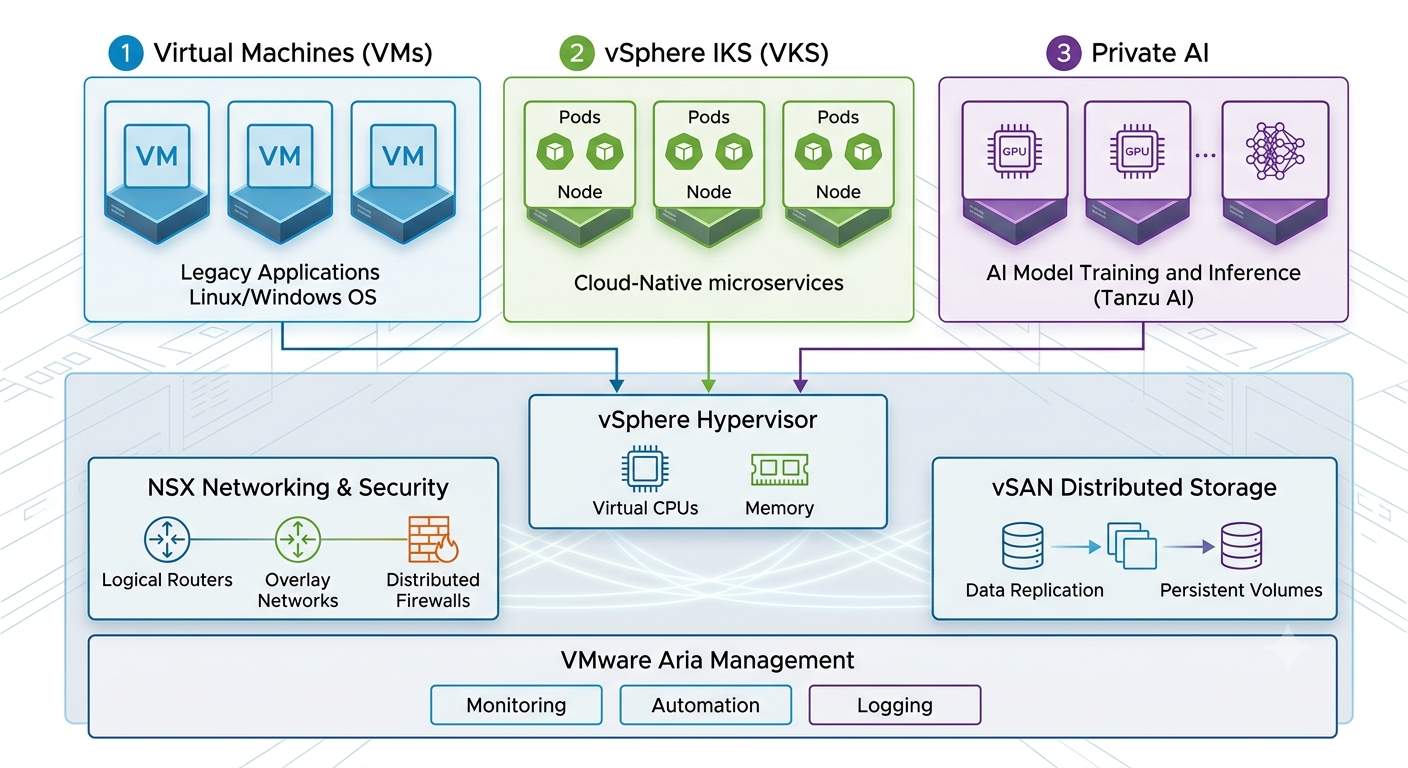

VMware Cloud Foundation 9.1 – Private AI: Unified Control Plane, Not a Science Project

┌─────────────────────────────────────────────────────────────────────┐
│                    VCF 9.1 Private Cloud                            │
│  ┌──────────────┐  ┌──────────────┐  ┌───────────────────────────┐  │
│  │ VM Workloads │  │ K8s (VKS)    │  │ AI Inference (PAIF/NVIDIA)│  │
│  │ • Traditional│  │ • Tanzu      │  │ • NVIDIA NIM Microservices│  │
│  │ • Databases  │  │ • Upstream   │  │ • vGPU / GPU Passthrough  │  │
│  │ • Apps       │  │ • Helm/OCI   │  │ • pgvector (DSM)          │  │
│  └──────────────┘  └──────────────┘  └───────────────────────────┘  │
│         │                │                        │                 │
│         └────────────────┼────────────────────────┘                 │
│                          ▼                                          │
│  ┌───────────────────────────────────────────────────────────────┐  │
│  │  Shared Substrate: vSphere 9.1 + vSAN 9.1 + NSX 4.2 + Aria    │  │
│  └───────────────────────────────────────────────────────────────┘  │
└─────────────────────────────────────────────────────────────────────┘

Prerequisites (No Shortcuts)

✓ VCF 9.1 + Private AI Foundation license (Broadcom)
✓ NVIDIA AI Enterprise license (NVIDIA) — per GPU
✓ GPU hosts: H100/A100/L40S/L4, AMD MI300X, Intel Gaudi3
✓ vSAN ESA (recommended) or OSA with NVMe tier
✓ NSX for micro-segmentation (AI tenant isolation)
✓ VKS enabled for containerized AI workloads

Three Inference Patterns

Pattern 1: vGPU Multi-Tenant

vmClass: ai-inference-a100-20gb
GPU Profile: vgpu-20c
Workload: NVIDIA NIM (Llama-3-8B, Mistral-7B)
Density: 4 vGPUs per A100 40GB
Isolation: NVIDIA MIG + vSphere VM encryption

Pattern 2: GPU Passthrough

vmClass: ai-inference-h100-passthrough
GPU: NVIDIA H100 (passthrough)
Workload: TensorRT-LLM, vLLM, Triton Inference Server
Features: NVLink/NVSwitch topology awareness, TAS placement

Pattern 3: VKS + GPU Operator

apiVersion: vmoperator.vmware.com/v1alpha1
kind: VKSCluster
spec:
gpuOperator:
enabled: true
driverVersion: "550.90"
migStrategy: "single"
nodePools:
- name: gpu-pool
vmClass: ai-inference-a100-40gb
replicas: 3

DSM: pgvector for RAG

DSM 9.1 provisions PostgreSQL + pgvector as managed service:

dsm postgres create \
--name rag-vector-db \
--version 16 \
--extension pgvector \
--size 500Gi \
--replicas 3 \
--storage-class vsan-esa-dedup

No separate PostgreSQL management. Covered this in VMware Data Services Manager (DSM).

Zero-Downtime Operations: Live Patch + QAT Offload

ESX Live Patch: 80% of Patches, No Reboot

Traditional Cycle (90% of patches):

• Maintenance Mode (evacuate VMs) → 15-60 min
• Apply VIB → 5-10 min
• Reboot → 10-20 min
• Exit Maintenance Mode → 5-15 min

TOTAL: 35-105 min per host

Live Patch Cycle (80% of patches):

• Apply Live Patch VIB → 2-5 min
• Validate → 1-2 min

TOTAL: 3-7 min per host
VM Impact: ZERO

Eligible: Security patches, bug fixes in vmkernel, chardev, net, storage modules. Not eligible: Microcode, hardware drivers, boot loader.

9.1 enhancement: Live Patch now supports TPM-enabled hosts (blocked in 8.0/9.0).

DRS Optimized Evacuation: For the 20% requiring reboot, DRS checks compute capacity headroom before evacuation — only migrates if destination has capacity without contention.

vMotion Encryption Offload: Intel QAT

Encrypted vMotion (since 6.5) burned 15-30% CPU. QAT offload moves AES-GCM to hardware — 70% CPU reduction, 3× throughput.

Requirements: Intel Ice Lake+ with QAT enabled in BIOS. NSX not required.

esxcli system settings encryption set --vmotion-encryption-offload true
lspci -d 8086:4940  # Verify QAT device

Memory Tiering: NVMe/CXL as DRAM Extension

Hot Pages (Active Working Set)
┌─────────────────────┐
│ DRAM (DDR5)         │ ← Sub-μs latency
│ 256-512 GB/host     │
└──────────┬──────────┘
           │ Page Demotion (idle > threshold)
           ▼
Warm Pages (Infrequent Access)
┌─────────────────────┐
│ CXL-Attached Mem    │ ← 200-500ns latency
│ 1-2 TB/host         │ (Intel CXL 2.0, AMD CXL 1.1)
└──────────┬──────────┘
           │ Page Demotion (cold)
           ▼
Cold Pages (Capacity Tier)
┌─────────────────────┐
│ NVMe (PM1743)       │ ← 10-20μs latency
│ 8-16 TB/host        │ (vSAN ESA)
└─────────────────────┘

VMware Cloud Foundation 9.1: Changes That Matter

TCO impact: Up to 40% fewer servers for same VM density. DRAM is the expensive part — tiering shifts capacity to cheaper NVMe/CXL.

TLS 1.3 Minimum

Now, vSphere 9.1 enforces TLS 1.3 for all management traffic. Thus, TLS 1.2 disabled by default.

openssl s_client -connect vcenter.fqdn:443 -tls1_3

Moreover, FIPS 140‑3 Level 1 out of the box (vCenter, ESXi, NSX, Aria):

• vCenter Server Appliance
• ESXi hosts
• NSX Manager/Edge
• Aria Operations

Certificate Lifecycle Automation

Specifically, VMCA manages vCenter + all ESXi host certificates.

Certificate Lifecycle (9.1):

• VMCA issues certs (2-year validity)
• In detail, 30 days before expiry → Autorenewal triggered
• New cert pushed to all managed entities
• Services reload gracefully (no restart)
• Audit log entry in VCF Operations

Therefore, Custom CA: Import enterprise root → VMCA becomes subordinate → all certs chain to enterprise PKI.

VMware Cloud Foundation 9.1 Upgrade Path: Know Where You Stand

First, supported upgrade matrix (VCF 5.2.x → 9.1 direct, 5.1.x → 5.2 first, 4.x → rebuild, VVF 9.0 → 9.1 direct).

Next, pre‑upgrade checklist (VCF Ops 9.0.2+, ESXi 8.0 U3e+, vSAN ESA 8.0 U3+, NSX 4.1.2+, Aria 8.14+, backups, active subscription, HCL‑verified hardware).

VMware Cloud Foundation 9.1 Pre-Upgrade Checklist

✓ VCF Operations at 9.0.2+ (Holodeck 9.1 for lab validation)
✓ All hosts at ESXi 8.0 U3e minimum
✓ vSAN ESA 8.0 U3+ (if using ESA)
✓ NSX 4.1.2+ (4.2 recommended)
✓ Aria Suite 8.14+
✓ Backup: SDDC Manager, vCenter, NSX Manager
✓ License: VCF 9.1 subscription active in Business Services Console
✓ Hardware: HCL verified for 9.1 (Intel 4th/5th Gen, AMD Genoa/Bergamo/Turin)

Day-2 Operations: The Delta

Finally, day‑2 delta table (Live Patch, Quick Patch, ZTP, core‑based licensing, auto‑cert renewal, Private AI Foundation, immutable snapshots + SRM).

For Reference, External References

VCF 9.1 Upgrade Guide — Broadcom TechDocs: Upgrading to VMware Cloud Foundation 9.1

Broadcom Support Portal — Licensing & Entitlements: https://support.broadcom.com/group/ecx/vmware-cloud-foundation

Likewise, Internal Links (teimouri.net)

vTopology in vSphere: NUMA and vNUMA Management: https://www.teimouri.net/vtopology-in-vsphere-numa-vnuma-best-practices/

Static Binding vs Ephemeral Binding in VDS: https://www.teimouri.net/distributed-switch-static-ephemeral-binding/

Deprecated Features from Legacy vSphere Versions: https://www.teimouri.net/whats-removed-from-vmware-vsphere-7/

Bottom Line

In summary, VCF 9.1 isn’t an incremental update. Indeed, it’s the first release where licensing, patching, provisioning, scheduling, storage, security, and AI all operate from a single control plane with fleet-wide automation.

Consequently, for VCF 5.x shops: The 18-month security patch clock is ticking. VCF 8/9 end-of-support dates are fixed. Therefore, upgrade to 9.1 isn’t optional — it’s the only path to continued security updates and Private AI capability.
